Features

USB Mouse Control with GUI OSD

  • The GUI OSD interface is provided and used with your USB mouse.

Intelligent Motion Trigger Recording

  • Only the channel with an event will be recorded to effectively save a significant amount of hard disk space and have the maximized recording time.
  • Supports pre-alarm recording.

Remote Surveillance

  • Mobile surveillance via our self-developed and free program, "EagleEye", is supported on many popular mobile platforms, such as iPhone, BlackBerry, WinCE, J2ME & Android.
  • Network surveillance via the licensed software "Video Viewer", Internet Explorer, Mozilla Firefox or Google Chrome web browser, and QuickTime player is supported with up to 5 users’login simultaneously.

Remote Independent Operation

  • Channel switching & video playback are fully independent from the local site, allowing users to have private image monitoring remotely.

H.264 Video Compression Technology

  • Highly improves video quality for live, recording, and network.
  • Recording file size is minimized for longest recording time.
  • Lower bit rate required for fastest network transfer.

Multiplex

  • Allows live display, record, playback, backup and network operation at the same time.

Backup Function

  • Supports USB flash drive and network backup.

Audio / Video Support

  • 4 audio-in, 1 audio-out to record sounds.
  • VGA interface built-in.

Specifications

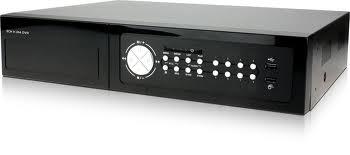

  • Model: KPD677
  • Video System: NTSC / PAL (auto detection)
  • Video Compression Format: H.264
  • Video Input(Composite video signal: 1
  • Vp-p 75Ω BNC): 8channels
  • Video Output (BNC): Main Monitor Output: for stable display ( BNC)
  • Audio Input/Output: 4 audio inputs, 1 audio output (Mono)
  • Maximum Recording Rate (Frame): 704×480 pixels with 60 IPS <NTSC> / 704×576 pixels with 50 IPS <PAL>
  • Maximum Recording Rate (CIF): 352×240 pixels with 240 IPS <NTSC> / 352×288 pixels with 200 IPS <PAL>
  • Image Quality Setting: SUPER BEST / BEST / HIGH / NORMAL
  • Hard Disk Storage: Accommodates 2 SATA HDDs (1 HDD capacity up to
  • 2TB)
  • Quick Search: Time / Motion / Alarm search mode
  • SATA Interface: Built-in
  • VGA Interface: Built-in
  • Recording Mode: Manual / Timer / Motion / Alarm / Remote
  • Multiplex Operation: Live display / record / playback / backup / networkoperations
  • USB Mouse Control: YES
  • Motion Detection Area: 16 × 12 grids per channel
  • Motion Detection Sensitivity: 3 adjustable parameters for accurate detection
  • Pre-alarm Recording: YES
  • Backup Device: USB 2.0 flash drive / Network
  • Web Transmitting Compression Format: H.264
  • Ethernet 10/100 Base-T. Supports: remote control and live view via Ethernet
  • Web Interface: Licensed software “Video Viewer” / Internet Explorer, Mozilla Firefox or Google Chrome web browser / QuickTime player (5 users access simultaneously) *Operating System: Windows 7 / Vista / XP / 2000
  • Network Protocol: TCP/IP, PPPOE, DHCP and DDNS
  • Basic Remote Independent Operation: YES
  • Event Notification: By FTP & E-Mail
  • R.E.T.R. (Remote Event Trigger Recording): YES
  • IR Remote Control: YES (IR receiver built-in)
  • Mobile Surveillance: YES (Including iPhone, BlackBerry, WinCE & J2ME)
  • Picture Zoom: 2X digital zoom
  • PTZ Control: YES
  • Alarm I/O: 16 inputs, 1 output
  • Key Lock (Password Protection): YES
  • User Level: Administrator & Operator
  • Video Loss Detection: YES
  • Camera Title: Supports up to 6 letters
  • Video Adjustable: Hue / Saturation / Contrast / Brightness
  • Date Display Format: YY/MM/DD, DD/MM/YY & MM/DD/YY
  • Daylight Saving: YES
  • Power Source (±10%): DC 19V
  • Power Consumption (±10%): < 64 W
  • Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
  • Dimensions (mm)**: 430(W) x 65(H) x 338(D)
  • System Recovery: System auto recovery after power failure
  • Optional Peripherals: Keyboard Controller
